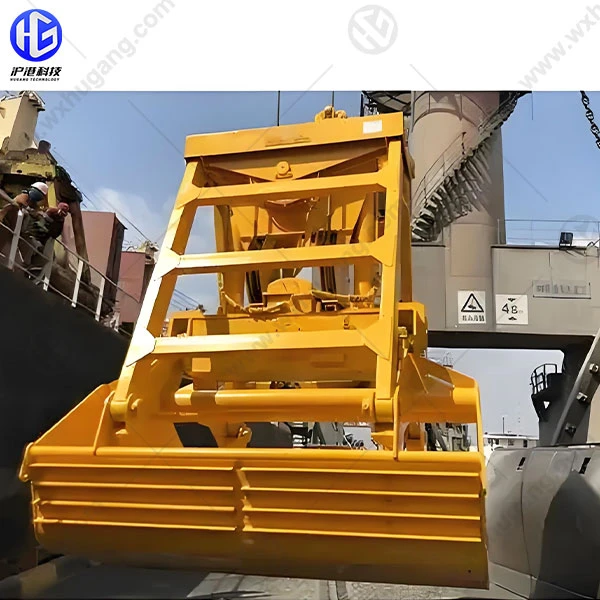

Xov Xwm Hugan Cov Xov Tooj Cua Chaw Taws Teeb Tswj Hlaws yog qhov khoom siv xov tooj cua sib tsoo uas siv cov hlua khau rau ib leeg. Nws yog tsim tshwj xeeb rau kev ua haujlwm nrog ib qho {1} Hook Crane, daws cov teeb meem ntawm cov khoom siv qis dua thiab kev ua haujlwm siab ntawm cov hlua khau. Peb cov chaw taws teeb tswj cov chaw taws teeb tshwj xeeb yog qhov tsim nyog rau ib qho {4} Tuske hook cranes thiab marine gantry cranes, thiab muaj kev ntseeg siab thiab yooj yim rau kev khiav lag luam. Siv xov tooj cua tswj, lub thoob ntim tau qhib thiab tsis muaj peev xwm ntawm txhua txoj haujlwm hauv huab cua.
Lub xov tooj cua chaw taws teeb hluav taws xob tau siv nyob rau hauv kev lag luam xws li shipping, chaw nres nkoj, chaw ua haujlwm, thiab mines. Lawv yog cov cuab yeej zoo tshaj plaws rau kev thau khoom thiab tsis muaj cov khoom thauj khoom xws li thee, cov ntxhia pob zeb, hmoov av chiv, thiab cov xuab zeb daj. Lawv tuaj yeem ua haujlwm nyob rau hauv ib puag ncig hnyav xws li kub, heev txias, hmoov av, thiab nag yam tsis muaj kev cuam tshuam lawv kev ua tau zoo. Cov chaw taws teeb tswj qhov deb tuaj yeem ncav cuag ntau dua 100 meters. Cov chaw taws teeb tswj kev siv lub siab- Kev ua tau zoo roj, tso cai rau tshaj 100 teev ntawm kev ua haujlwm txuas ntxiv ntawm ib tus nqi.
Kev sib txuas rau lub crane:Cov chaw taws teeb tswj cov thoob tshuav kev sib npaug sib npaug yuav yog ncaj tau ncaj qha dai ntawm crane nuv rau siv.
Qhov Zoo ntawm Cov Chaw Taws Xob Xov Tooj Chaw Taws Teeb Tswj Hlis
Txhua txoj hlab hydraulic nyob rau hauv cov chaw taws teeb tswj tau nyob hauv qab nqaj, muaj txiaj ntsig kev xeb thiab dej ingress.
Hauv -}}} mouse tsim khoom hydraulic sib xyaw ua ke thiab cov tshuab hydraulic nrog kev tswj nruj.
Plaub fab ntawm lub nqaj sab sauv yog beveled, ua kom txuas tau cov kev pabcuam lub neej ntawm cov hlua xo.
Rau kev saib xyuas yooj yim dua, kev tswj cov chaw taws teeb
Thaum muaj xwm ceev, Xov Tooj Cua Hluav Taws Xob Kev Tswj Xyuas yog nruab nrog cov khoom siv thaum muaj xwm ceev.
Kev qhia txuj ci ntawm xov tooj cua chaw taws teeb
|
Tus qauv (Rc) |
Swl (t) |
Tuag phaus (kg) |
Lub peev xwm (m³) |
Cov hlua hlau Inch (hli) |
Log thiab hlua uas rub tau khoom | Zuag qhia tag nrho ntev (hli) | |||||
|
Qhov dav (hli) |
Tus nqi | A | B | C | D | E | |||||
| RC10.0-1.0-5000 | 10 | 5000 | 5 | 24 | 520 | 3 | 3635 | 3398 | 2430 | 3159 | 2450 |
| RC16.0-1.5-6000 | 16 | 6200 | 6 | 28 | 520 | 3 | 3720 | 3483 | 2500 | 3250 | 2700 |
| Rc20.0-1.5-8000 | 20 | 8000 | 8 | 28 | 520 | 3 | 4008 | 3796 | 2600 | 3605 | 3000 |
| RC28.0-2.0-9000 | 28 | 9800 | 9 | 36 | 650 | 3 | 4159 | 3960 | 3000 | 3753 | 3200 |
| Rc40.0-2.5-10000 | 40 | 15000 | 10 | 40 | 810 | 3 | 4596 | 4305 | 3300 | 3805 | 3200 |
| RC10.0-1.5,1.0-3300,5000 | 10 | 5000 | 3.3-5.0 | 24 | 520 | 3 | 3635 | 3398 | 2430 | 3159 | 2450 |
| RC16.0-1.6,0.8-5000,8000 | 16 | 7000 | 5.0-8.0 | 28 | 520 | 3 | 4008 | 3796 | 2600 | 3605 | 3000 |
| Rc20.0-2.0,1.0-6000,10000 | 20 | 8000 | 6.0-10.0 | 28 | 520 | 3 | 4325 | 4268 | 2877 | 3957 | 3000 |
| RC25.0-2.5,1.0-6000,12000 | 25 | 9500 | 6.0-12.0 | 36 | 650 | 3 | 4110 | 3972 | 3030 | 3866 | 3500 |
| RC28.0-2.5,1.0-8000,14000 | 28 | 10500 | 8.0-14.0 | 36 | 650 | 3 | 4110 | 3972 | 3030 | 3866 | 3800 |
| RC36.0-1.6,1.0-13000,20000 | 36 | 14800 | 13.0-20.0 | 40 | 810 | 3 | 5033 | 4896 | 3520 | 4636 | 4000 |
| RC40.0-1.6,1.0-15000,22000 | 40 | 16000 | 15.0-22.0 | 40 | 810 | 3 | 5033 | 4896 | 3520 | 4636 | 4400 |
Kev Siv thiab Txij Nkawm Xov Xwm Chaw Taws Teeb Tswj Xyuas
* Tshawb xyuas cov chaw taws teeb tswj kev puas tsuaj rau ib qho kev puas tsuaj rau nws sab nrauv, suav nrog kev rhuav tshem lossis tawg hauv cov txheej txheem steel thiab cov xau hauv cov kab hydraulic;
* Ua kom cov chaw taws teeb tswj tau muaj lub zog txaus, lub teeb liab kev sib kis yog qhov qub, thiab cov khoom siv cov khoom siv tsis muaj qhov ua txhaum;
* Txheeb xyuas cov roj qib hydraulic thiab ntsuas kub. Yog theem tsis txaus, rov ua nws sai; Yog tias cov roj kub ntau dhau, cia nws txias ua ntej ua haujlwm;
* Tshem tawm tej kev cov nyom ntawm thaj chaw ua haujlwm thiab ua kom muaj kev deb ntawm cov neeg ua haujlwm thiab cov khoom siv.
* Nruj me ntsis rau kev thauj khoom thaum cov ntaub ntawv tuav; overloading yog txwv.
* Thaum tuav tau yooj yim lossis cov khoom siv tsis yooj yim, ua haujlwm rau cov chaw taws teeb tswj kom maj mam txo tau kev quab yuam thiab tiv thaiv kev puas tsuaj.
* Yog tias muaj cov khoom siv tsis zoo thaum lub sijhawm ua haujlwm (xws li Jamming lossis Tswb Hais Lus Sai), nres kev ua haujlwm tam sim ntawd, daws teeb meem, thiab tom qab ntawv siv.
* Zam kev ua haujlwm nyob rau hauv ib cheeb tsam nrog kev cuam tshuam hluav taws xob muaj zog hluav taws xob (xws li ze rau high {{voltage fais fab kab) kom tiv thaiv cov phiajcim fais fab hluav taws xob) txhawm rau cuam tshuam rau kev cuam tshuam rau teeb liab thiab cov khoom siv tsis malfunct.
* Tom qab txhua hnub ua haujlwm, ntxuav ntawm cov npoo ntawm cov thoob cov khoom seem thiab plua plav, thiab tshuaj xyuas ib qho ntawm cov pob hydraulic kab;
* Txheeb xyuas cov roj av hauv hydraulic thiab qib lim tiam, hloov cov roj lim hydraulic txhua hli, thiab ua cov kab ke hydraulic overhaultyly;
* Txheeb xyuas roj teeb tswj cov chaw taws teeb kom tiv thaiv roj teeb puas tsuaj los ntawm kev ua kom muaj roj teeb, thiab tshem tawm cov roj teeb yog tias cov cuab yeej yuav tsis siv rau ncua sijhawm;
* Yuav tsis tu ncua lub bolts ntawm tus qauv steel, thiab ua xeb, anti {{} corrosion kho rau ntawm cov thoob plaws txhua xyoo.
